BS Series Large Bottle Servo Automatic Models
- Features
- Servo controls Clamping System, precisely and stable action, quiet motion.

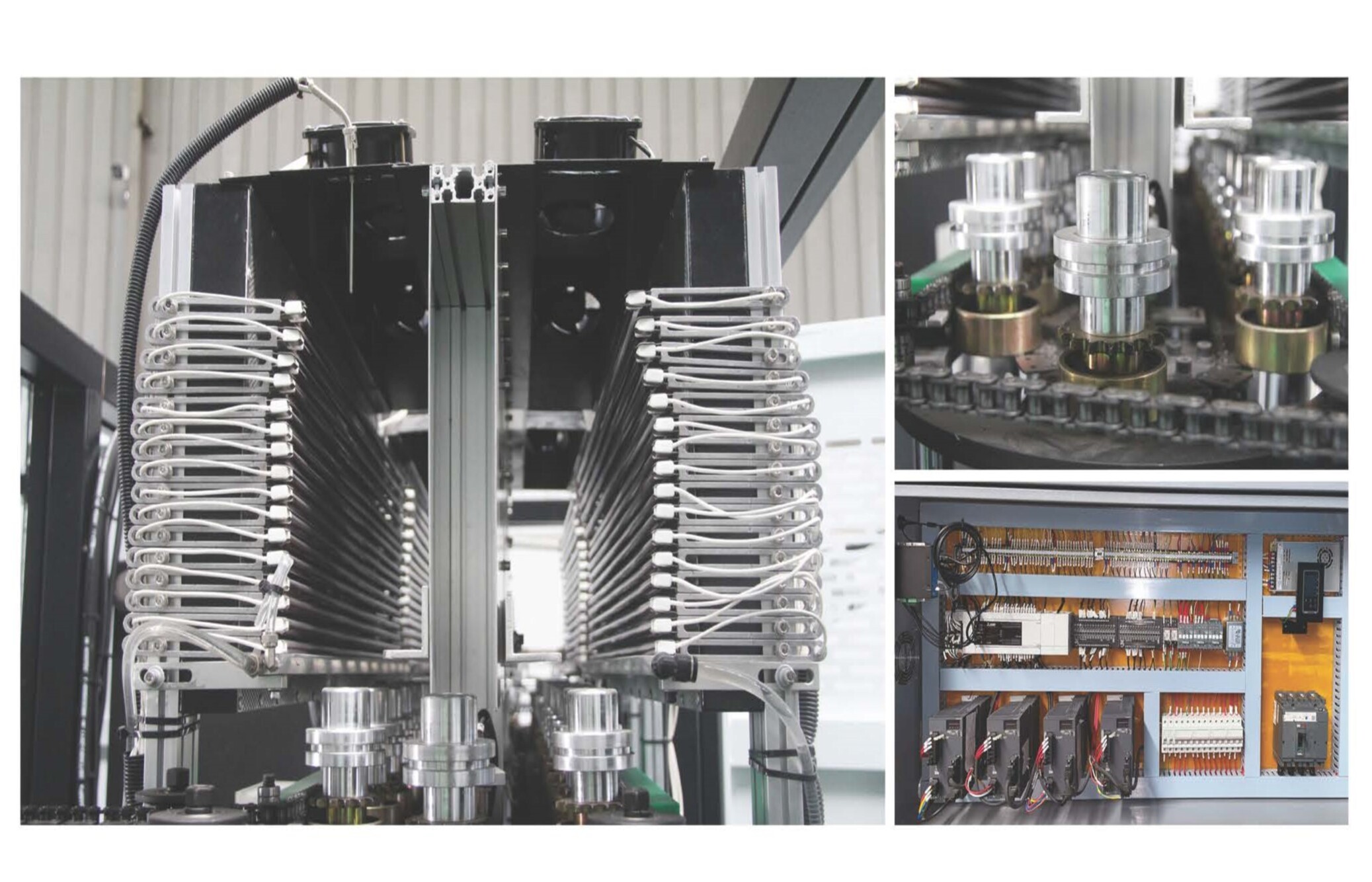

- Unique structure of pitch changing. Preforms are close to each other when heating, preform distances are enlarged when entering Blow Mold. This design make machine compact, with shorter oven and save energy.
- Optional Air recycle system can recycle high pressure air to be low pressure air resource, which reduce compressor working and save energy.
| Items | Unit | Machine Models | ||||
|---|---|---|---|---|---|---|
| BS2-5L | BS2-10L | BS1-20L | BS2-20L | |||
| Molding | Cavity Pitch | mm | variable | |||
| Cavity Qty. | cav. | 2 | 2 | 1 | 1 | |
| Bottles | Max. Bottle Volume | 5L | 12L | 20L | 20L | |
| Max. Neck Size | mm | 60 | 80 | 80 | 80 | |
| Max. Bottle Diameter | mm | 200 | 210 | 290 | 290 | |
| Max. Bottle Height | mm | 350 | 430 | 480 | 480 | |
| Theoretical Output | BPH | 1,300 - 1,500 | 1,000 - 1,500 | 400 - 600 | 800 - 1000 | |
| Power | Rated Power | KW | 110 | 130 | 90 | 160 |
| Air Supply | Blowing Pressure | Mpa | 2.5 - 4.0 | 2.5 - 4.0 | 2.5 - 4.0 | 2.5 - 4.0 |
| Motion Pressure | Mpa | 0.8 - 1.2 | 0.8 - 1.2 | 0.8 - 1.2 | 0.8 - 1.2 | |
| Machine Size | Main Machine Size | M | 3.5 x 2.35 x 2.45 | 5.1 x 2.0 x 2.6 | 3.7 x 1.5 x 2.1 | 6.8 x 1.8 x 2.1 |
| Machine Weight | KGS | 4,500 | 5,000 | 4,000 | 7,000 | |
