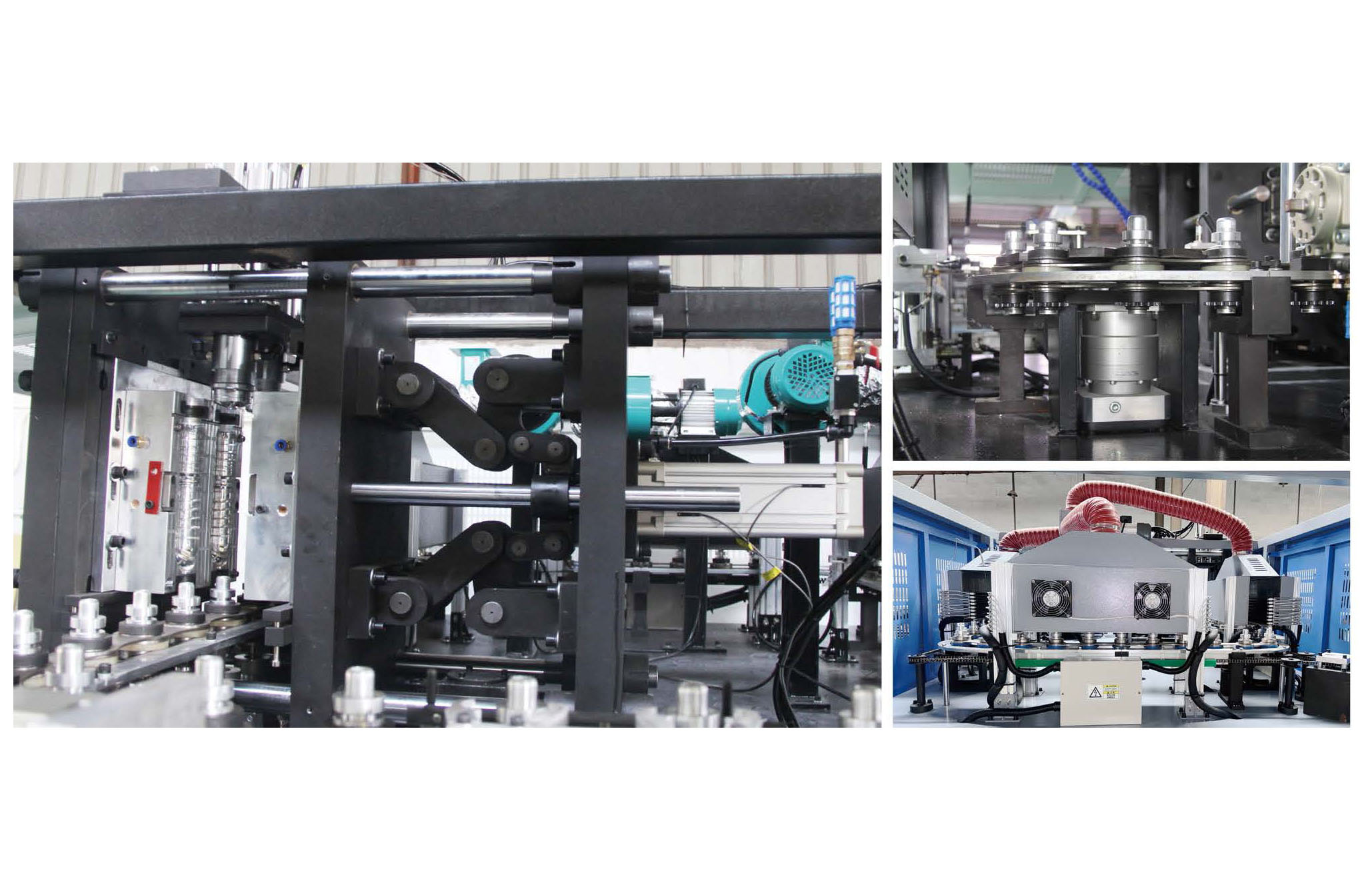

Eco Series Automatic Servo Models
- Features
- Servo controls preform System, speed up 20%
- Wide range of application as various PET bottles under 2L for water, beverage, cosmetics, etc
- Advanced high frequency infared heaters upgrade the heating effiency 30%-50%.Each layer heaters controlledseparately
- Mold fixed by drawer design. Aluminum mold changeover work can be easily done in half hour
| Items | Unit | Machine Models | ||||
|---|---|---|---|---|---|---|
| ECO2-2L | ECO4-2L | ECO6-0.7L | ECO6-2L | |||
| Molding | Cavity Pitch | mm | 120 | 114.3 | 76.2 | 114.3 |
| Cavity Qty. | cav. | 2 | 4 | 6 | 6 | |
| Bottles | Max. Bottle Volume | 2L | 2L | 700ml | 2L | |
| Neck Size | mm | 18-38 | 18-38 | 18-38 | 18-38 | |
| Max. Bottle Diameter | mm | 105 | 105 | 69 | 105 | |
| Max. Bottle Height | mm | 330 | 330 | 250 | 330 | |
| Theoritical Output | BPH | 1.800 - 2.200 | 3.500 - 4.500 | 6.000 - 7.000 | 5.500 - 6.000 | |
| Power | Rated Power | KW | 60 | 80 | 85 | 140 |
| Consuming Power | KW | 35 | 45 | 40 | 65 | |
| Air Supply | Blowing Pressure | Mpa | 2.5 - 4.0 | 2.5 - 4.0 | 2.5 - 4.0 | 2.5 - 4.0 |
| Motion Pressure | Mpa | 0.8 - 1.2 | 0.8 - 1.2 | 0.8 - 1.2 | 0.8 - 1.2 | |
| Machine Size | Main Machine Size | M | 2.92 x 2.0 x 2.25 | 3.65 x 2.0 x 2.25 | 4.2 x 2.0 x 2.45 | 5.85 x 2.27 x 2.48 |
| Machine Weight | KGS | 2.750 | 3.600 | 4.500 | 8.000 | |
